The GS50119 series high-speed 360-degree rotating conductive ring has a design speed of 5000 rpm. Its metal housing significantly increases its load-bearing capacity, supporting multiple transmission lines and meeting the rotating power supply needs of large equipment.
GS50119 series high-speed 360-degree rotating conductive ring product features

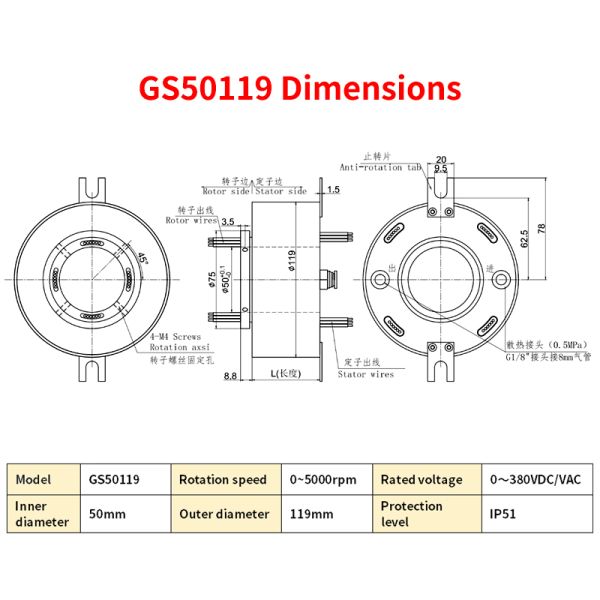

1. Featuring a large 50mm center hole and 119mm outer diameter, the metal housing is specifically designed for use in large rotating equipment requiring passage through extra-thick shafts.
2. A combination of alloy brushes and gold-plated rings ensures heavy-duty operation at speeds up to 5000rpm, reducing friction and improving durability.
3. It offers 2-36 power and signal lines, supporting extreme configurations such as 30 signal lines or 36 power lines, meeting the needs of large-scale equipment.
4. 800VCA insulation strength and ≥1000MΩ insulation resistance, combined with heat dissipation connectors, ensure safe operation in high-voltage environments.
GS50119 series high-speed 360-degree rotating conductive ring parameters
|
Mechanical Specifications
|
Electrical Specifications
|
|
Speed
|
5000rpm(The maximum customizable speed is 12000)
|
Voltage
|
0-380VAC/VDC
|
|
Operating temperature
|
-30℃～+80℃
|
Insulation resistance
|
≥1000MΩ/500VDC
|
|
Operating humidity
|
0～85%RH
|
Wire Specifications
|
Teflon wire
|
|
Contact material
|
Imported gold-plated ring
|
Dielectric strength
|
300VAC@50Hz,60S
|
|
Shell material
|
Aluminum Alloy
|
Dynamic resistance change value
|
<0.01Ω
|
|
Rotation torque
|
0.05N.m+0.02N.m/6 channels
|
|
|
|
Protection level
|
IP51
|
GS50119 series high-speed 360-degree rotating conductive ring applications
It is mainly used for spindles of high-speed machining centers, centrifugal separation equipment, aircraft engine testing, high-end medical equipment, and specific national defense and scientific research equipment.
